Actuator FOR OPERATION OF ANY QUARTERTURN(90°) VALVES

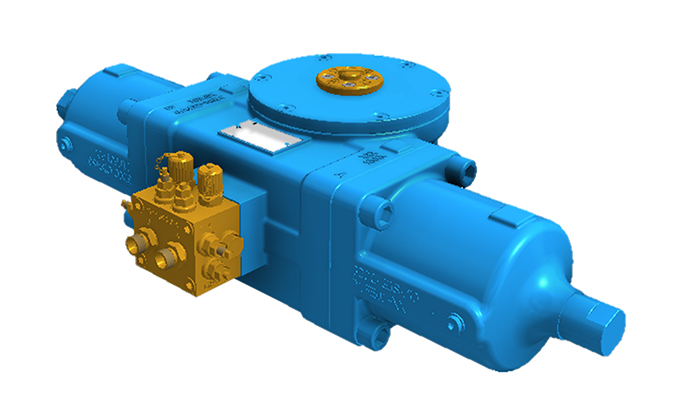

DOUBLE ACTING HYDRO-LOCK ACTUATOR

  • is designed to secure the valve hydraulically locked in its last order positions if there is any failure of hydraulic oil pressure.

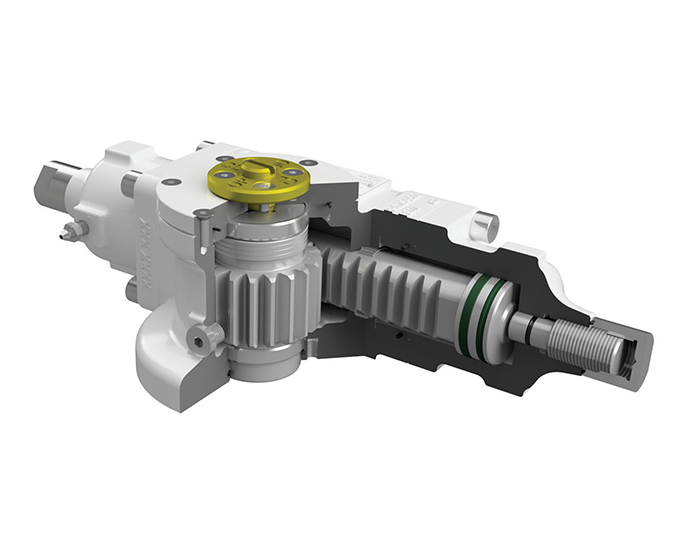

  • Actuator is specifically designed with a compact rack and pinion configuration. It provides simple construction and constant output torque throughout the stroke.
Nominal Torque 180 ~ 12,000 Nm / 135 bar

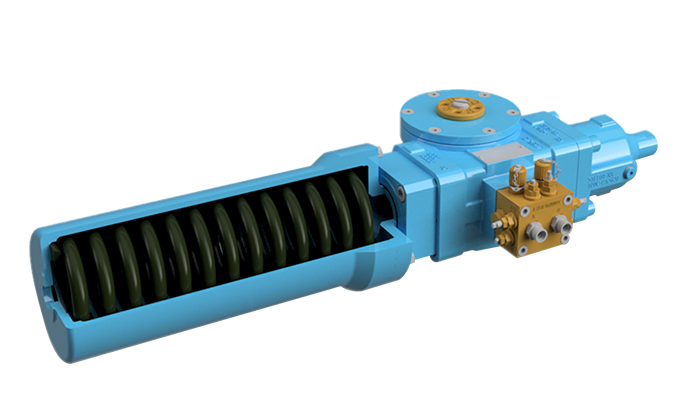

SINGLE ACTING ACTUATOR

  • produces spring ending torque up to 23,000 Nm.
  • This hydraulic actuator provides reliable valve shutdown capability when an external power source is not available by spring return operation.

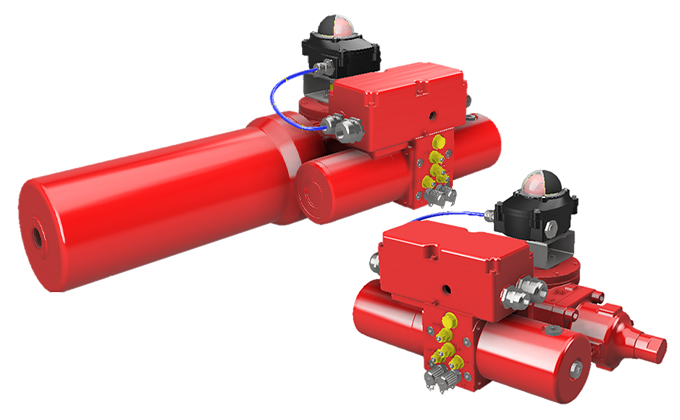

SCP (Self-Contained Powerpack)

  • is an electro-hydraulic local power pack directly mounted on the valve/actuator for remote control purpose.
  • This type does not require hydraulic pipes, needed solely electrical installation.

AMBIENT TEMPERATURE

  • RAP actuators are designed for operating temperature of -20°C to +80 °C as normal applications.
  • Optional high and low temperature of -45°C to +120 °C, respectively are available.
  • Special requirements can be supplied on request.
  • For higher and lower temperature applications, consult us.

VALVE INTERFACE

  • Valve mounting adaption in accordance with ISO 5211 mounting pattern.

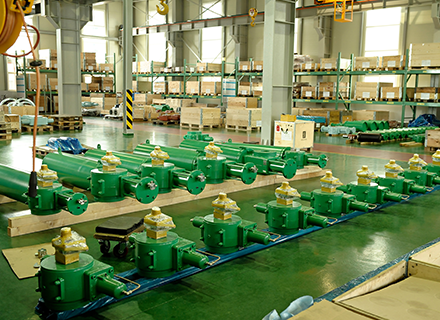

RAP HYDRAULIC DOUBLE-ACTING ACTUATOR

ACTUATOR

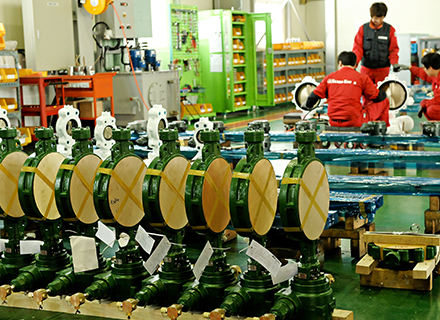

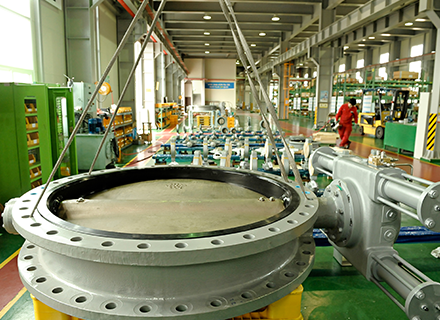

  • Actuator type RAP is a double acting quarter turn and rack & pinion type actuators designed for all types of butterfly-, plug-, and ball valves.
  • A compact rack and pinion design provides simple construction and constant output torque throughout the stroke.

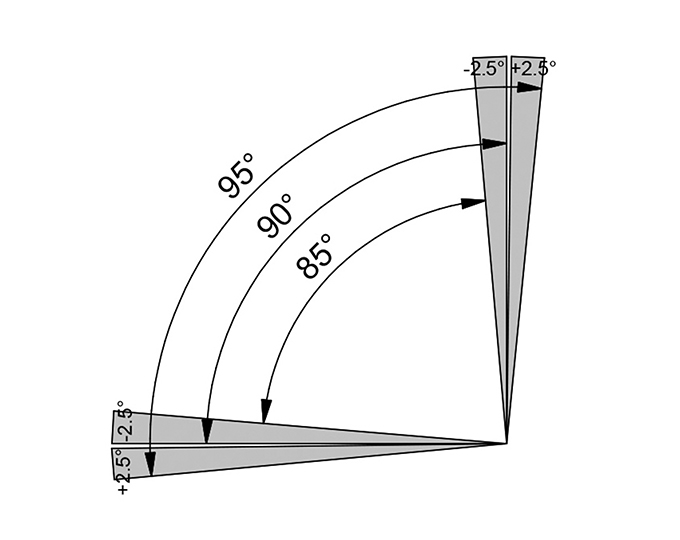

  • Full stroke adjustment screws are fitted to both end and turning in the stroke adjustment screws allows precise angular stroke adjustment between 85° and 95°

MAIN DATA

Normal-working pressure 135 bar
Test pressure 1.5 x system max. working pressure of 160 bar
Rotation (Clockwise closing) 90° ± 5°
Desing temp.(min. / max.) S -20°C / + 80°C, PU/NBR
H -20°C / +120°C, PTFE/Viton
L -45°C / + 80°C, PU/NBR
Indication Visual on top
Viscosity of hydraulic oil 15 to 200 cSt, acid-free hydraulic oil.
Accessories - Control blocks with Double pilot check valves.
- Double release valve, Double throttle valve.
- Quick connection for em'cy operation.
  • For further information, please see separate data sheets for other actuator mounted control components.
  • Scantec actuators are manufactured in accordance with the quality system stated in the ISO standard and each actuators, after assembly, is cleaned to NAS 1638/10 (ISO 4406 21/19/16) standard and plugged.
  • Another flushing grade available on request.

MATERIAL

Housing GCD 450 / GCD 350-22L-L VERSION
Cylinder GCD 450 / GCD 350-22L-L VERSION
Piston Hardened steel
Rack High tensile steel
Pinion Surface treatment high tensile steel
Seal NBR, VITON, PTFE

CLASSIFICATION

Meets all requirements to ABS, BV, DNV, LR, KR, RS, etc.
